SS-301 Strip Material
A-MIISCO IS SS- 301 Grade Strips Exporter all over the world.
A-MADE IN INDIA SPRING COMPANY is manufacturing AISI/SS 301 STRIPS in a variety of pricision sizes, dimension, and standards as per the requirement of clients.. This Strips features high polished finish and burs free, with debburing process free.This is the big advantage for end users. Accordingly, for Spiral spring makers and Constance Force Spring makers we have designed this strips.
A-MIISCO these strips are offered at most reasonable rates. Specifications also can be customized as per the demand of clients.
Strips attributes
Manufactured Strips passed quality examination test then after dispatched to customers. Below is the testing process or as per customers requirement.
- Mechanical/ tensile test
- Chemical/ spectro test
- Hardness test
- Positive material test
- Intergranular corrosion test
- Destructive/ non-destructive test
- Ultrasonic test
- Visual inspection test
Moreover, including these test product goes under the inspection of third parties to provide 100% qualified.

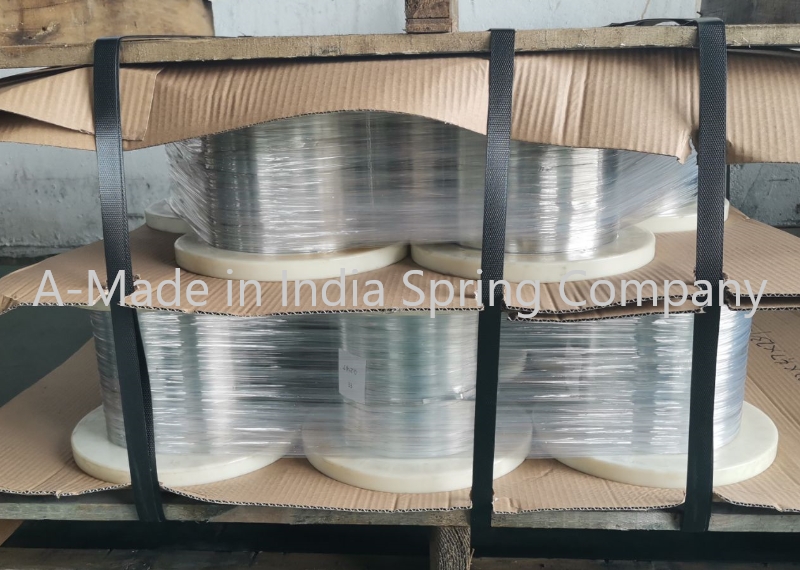

Customers can choose as per their suitability, one can demand any specific packing. AISI/SS 301 STRIPS will be a great option for Constant Force making Spring application and Spiral Spring application.
Stainless Steel 301 Sheets Specifications
| Specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface | Mirror, Sand Blast, Brush, Etching |
| Width | 3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12mm, 14mm, 18 mm, 20 mm, 25 mm etc. as per customer's requirement. |
| Finish | BURS FREE, DEBURING FREE. |
| Weight | 5 KG TO 20 KG. OF SPOOL AND ROLL. |
Grade Specifications for Stainless Steel 301 Sheets
| STANDARD | WERKSTOFF NR. | UNS | JIS |
|---|---|---|---|
| SS 301 | 1.4310 | S30100 | SUS 301 |
Chemical Properties of SS 301 Sheets
| ELEMENT | C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| SS 301 | 0.150 max | 2.00 max | 0.045 max | 0.030 max | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | 0.10 |
Mechanical Properties of SS 301 Sheets
| Grade/Temper | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) |
|---|---|---|
| 301 FULL HARD | 185 | 140 |
| 301 EXTRA FULL HARD | 190 | 150 |
